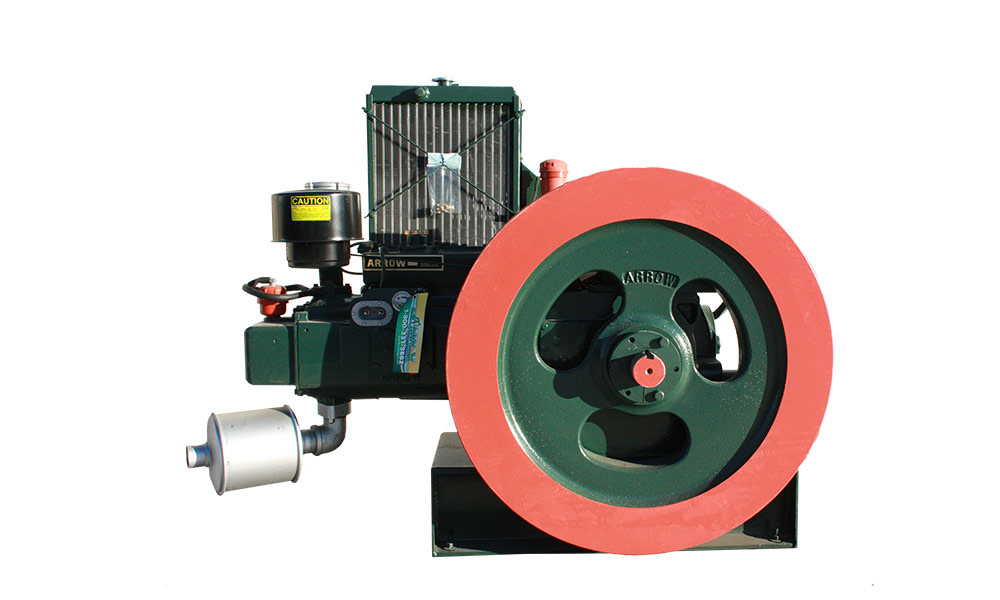

C106 Product Code: Arrow Engine Product Number: C106SKU: C106 SPEC Overview REQUEST A QUOTE Displacement 376 cubic inches (6.4 liters) Bore 7.5" (190.5 mm) Stroke 8.5" (216 mm) Speed Range 300-800 Maximum Continuous Horsepower 38 Normal Oil Pressure 30-70 psi Oil Temperature Normal Coolant Temperature Dry Weight 2690 lbs. (1220 kg) Number of Cylinders 1 Compression Ratio 6.2:1 Firing Order NA Engine Length 60.5" (1537 mm) Engine Width 47" (1194 mm) Engine Height 51.4375" (1307 mm) Crankcase Capacity (Including Filter) 11qts. (11 liters) Flywheel Housing SAE 3
