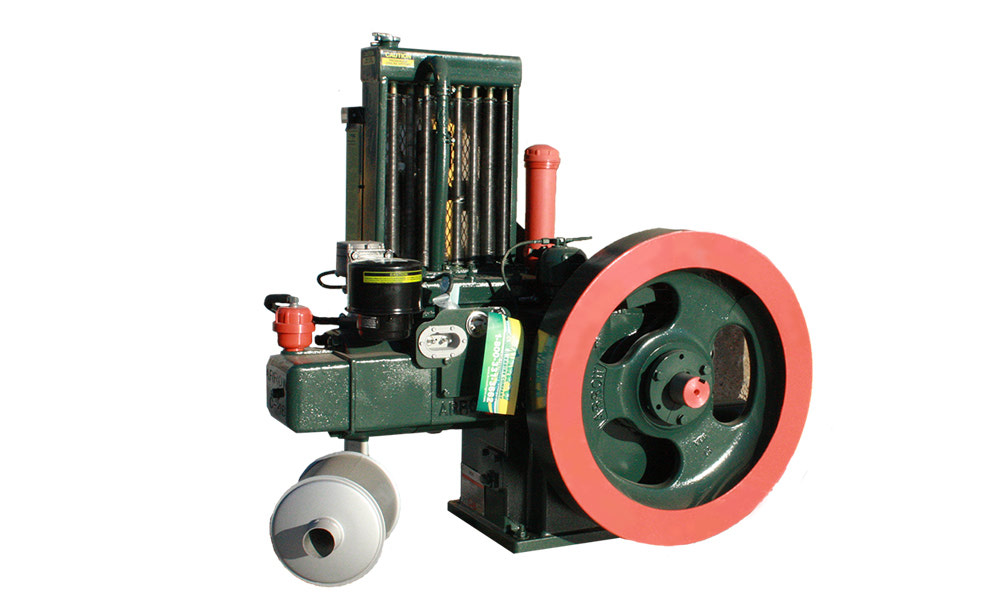

C46 Product Code: Arrow Engine Product Number: C46SKU: C46 SPEC Overview REQUEST A QUOTE Displacement 122.7 cubic inches (2.0 liters) Bore 5" (127 mm) Stroke 6.25" (159 mm) Speed Range 450-800 rpm Maximum Continuous Horsepower 12 bhp Normal Oil Pressure 30-70 psi Oil Temperature Normal Coolant Temperature Dry Weight 1360 lbs. (617 kg) Number of Cylinders 1 Compression Ratio 4.8:1 Firing Order NA Engine Length 47.625" (1210 mm) Engine Width 39.125" (994 mm) Engine Height 39" (991 mm) Crankcase Capacity (Including Filter) 7 qts. (6.6 liters) Flywheel Housing SAE 5
