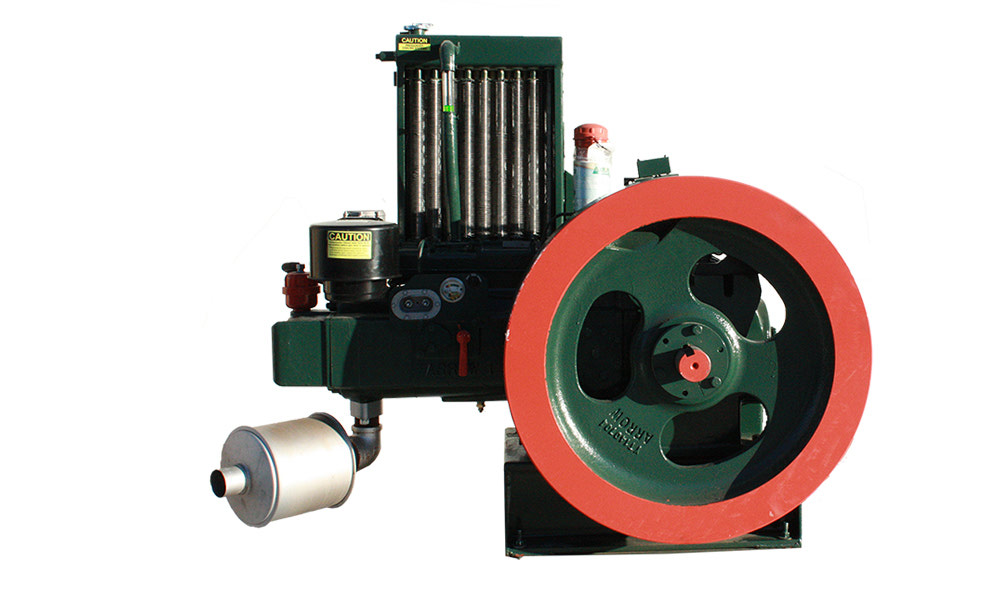

C66 Product Code: Arrow Engine Product Number: C66SKU: C66 SPEC Overview REQUEST A QUOTE Displacement 195 cubic inches (3.3 liters) Bore 5.25" (146 mm) Stroke 7.5" (190.5 mm) Speed Range 350-700 rpm Maximum Continuous Horsepower 17 BHP Normal Oil Pressure 30-70 psi Oil Temperature Normal Coolant Temperature Dry Weight 1640 lbs. (744 kg) Number of Cylinders 1 Compression Ratio 5.2:1 Firing Order NA Engine Length 53.375" (1356 mm) Engine Width 45.125" (1146 mm) Engine Height 44.125" (1121 mm) Crankcase Capacity (Including Filter) 7 qts. (6.6 liters) Flywheel Housing SAE 4
